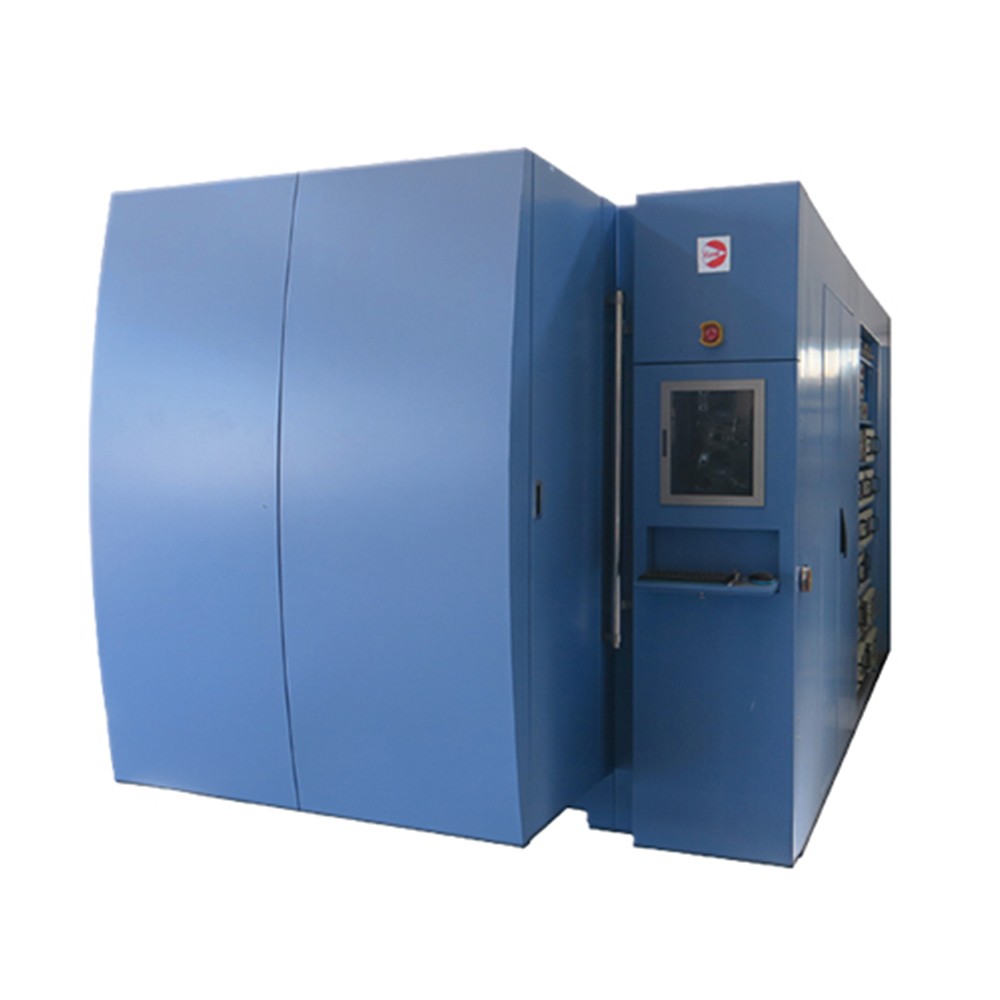

Оборудование для нанесения твердых покрытий V201

Мы выполняем процессы предварительной и финишной обработки, а также нанесения покрытий, предоставляя решения «под ключ». Кроме того, мы предлагаем комплексное предпродажное и послепродажное обслуживание для точного решения любых возникающих вопросов.

Описание продукта:

No.	Parameter	V201-8	V201-9	V201-12
1	Number of installable targets	2 different target groups (4 pieces per group)	3 different target groups (3 pieces per group)	3 different target groups (4 pieces per group)
2	Effective coating area	φ700 × 800 mm	φ700 × 600 mm	φ700 × 800 mm
3	Turntable load capacity	800 kg	700 kg	800 kg
4	Max heating temperature	600°C (same for all models)
5	Coating types	TiN, CrN, ZrN, TiAlN, AlTiN, AlCrN, AlCrSiN, TiSiN, etc. – single-layer or multi-layer hard coatings.
6	Coating cycle time	8–10 hours per batch	6–8 hours per batch	8–10 hours per batch
7	Applications	Primarily targets mold and die component coating applications, also suitable for cutting tools; a cost-effective medium-to-large coating system.	Primarily targets cutting tool coating applications, also suitable for mold coatings; an ideal choice for the tooling industry as a medium-sized system.	A medium-to-large version of the V201-9 coating system, with 25%–30% increased loading capacity; a fully intelligent coating system suitable for most production requirements.
8	Technical features	1. Dual Magnetic-field driven Sputtering system (DMS)
		2. Side-glow Enhanced Glow Discharge ion etching technology (SEGD)
		3. Plasma Output regulation Technology (POT) – (same for all models)
